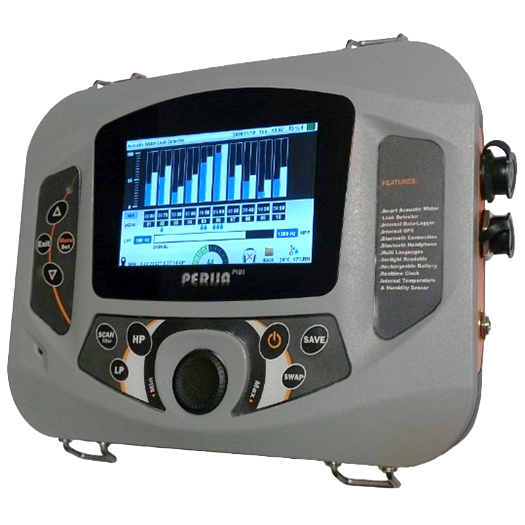

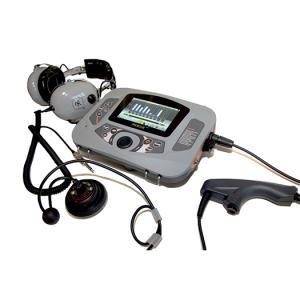

PERIJA PLUS Professional Grade is the latest generation Underground Water Leak Detector, based on a piezo electric ground microphone coupled with an advanced controller for identifying leaks in buried water pipes of different materials & depths.

The device can detect leaks in all types of water pipe networks under pressure, metallic and non-metallic water pipe networks, in both the main lines and branches of city, industrial and irrigation environment.

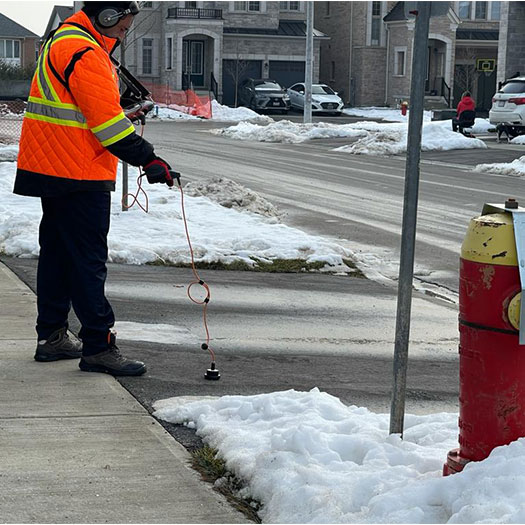

The Perija Plus is an advanced high capability water leak detection equipment that can be used to listen for & pinpoint water leaks in water pipes upto 750mm in diameter & which are being used at ≥ 2 bar pressure, allowing the operator to detect leaks in pipes buried upto 5 meter depth below ground.

How the buried water pipe leak detection system works:

When a pipe carrying water has a leak, water tends to spurt out of the leak point and, generates the following four types of sound:

Water flow sound

Impact sound

Friction sound

Pipe vibration sound

Combined, these sounds constitute the leakage sound.

Where there is no leakage, all the user can hear is the sound of the water flow.

Features

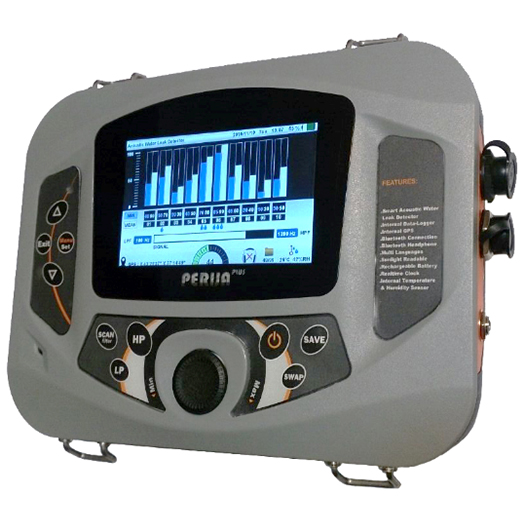

5” TFT Color display with excellent visibility in direct sunlight
Displaying data in English and French
Additional option (per customer request) to display data in Arabic, Chinese, Japanese, Persian, Turkish and Spanish
Equipped with the powerful Fuji Tecom Inc. piezo-electric sensor (U.S.A. Patent US5959210A)
Broadband performance frequency from 100 to 1200 Hz, along with nine band-pass filters
Equipped with the filteROT™ mode to help select the best available sound filter in the workplace
Equipped with the GPS (global positioning system)
Equipped with dedicated memory to save leak detection, system performance, geographic data
Ability to display the value of received audio signals instantaneously in the form of simple numbers or bar-graphs
Ability to measure and display minimum and maximum received signal while holding
the MUTE key in the form of bar-graphs or line-graphs
Supports wired and Bluetooth® stereo headphones
Equipped with the Bluetooth® technology to transfer the information to HSS Water
Leak Detection APP (Utility Smart Assistant)
Ability to mark the discovered leak locations on the information and the option to only transfer the information of discovered leaks to the Android application HSS-APP
Equipped with inside temperature and humidity sensors, smart display brightness control, and energy-saving mode
Equipped with the emergency shutdown function
Equipped with the wind noise reduction system
Equipped with rechargeable batteries and a fast charger
Equipped with Real-time date and time display
Equipped with a user-friendly Graphical User Interface (GUI) to control the device’s parameters and settings

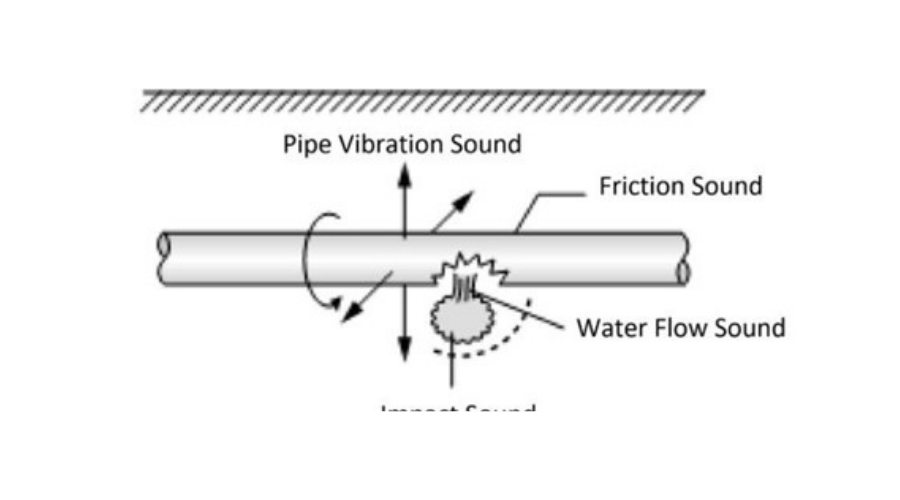

Leakage Sound

When a pipe carrying water has a leak, water tends to spurt out of the leak point and, generates the following four types of sound:

Water flow sound
Impact sound
Friction sound
Pipe vibration sound

Combined, these sounds constitute the leakage sound.

Where there is no leakage, all the user can hear is the sound of the water flow.

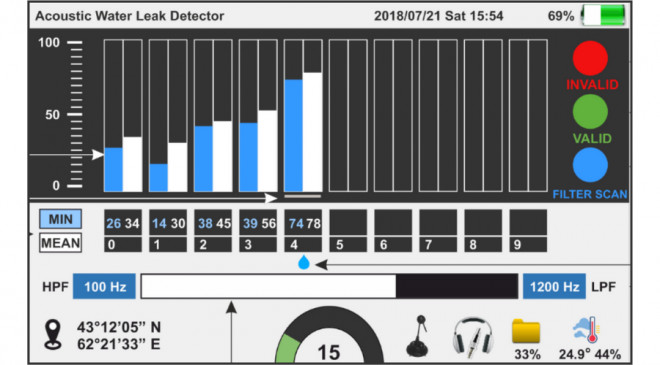

Automatic Data Storage:

The PERIJA Plus Underground Leak Detection Equipment can save the data resulting from user’s projects automatically.

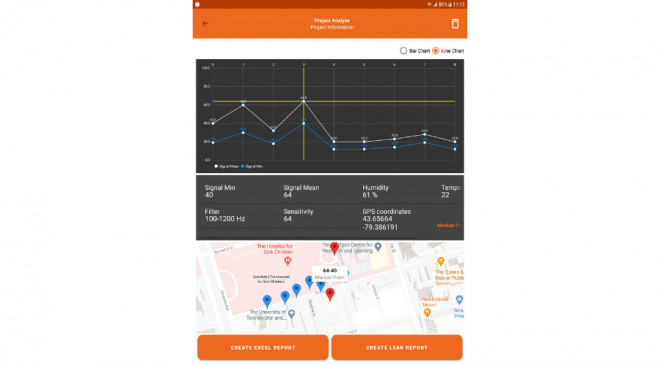

Store up to 600 Projects Data :

The Leak Detection System stores projects based on their date and time characteristics. It can store 20 projects (with a capacity of 2000 points) in each day. The total capacity of its memory is 30 days (i.e. it can store up to 600 projects data).

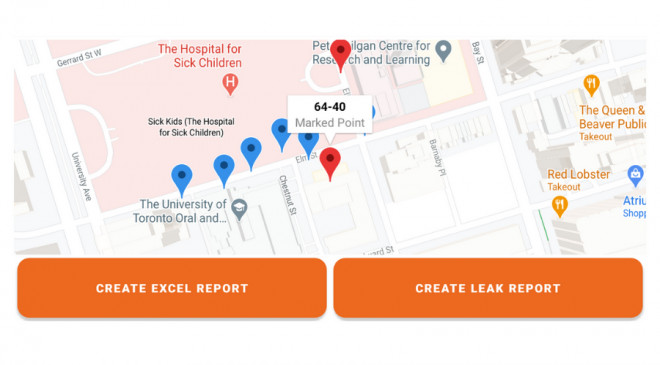

Built-in GPS for Logging GPS Locations:

The instrument is also equipped with built-in GPS for logging GPS locations to save leak detection, system performance & geographic data.

Specification

Technology	Acoustic
Sensor	Piezoelectric type, Pick-up (equipped with characteristic ball to break wind noise) IP67 equivalent (water depth 1m, 30 minutes) Power Supply Voltage 3.3V
Sensitivity	Total sensitivity 900V/G or higher (400Hz)
Ampliﬁcation	59dB±3
Frequency Range	100 -1200 Hz, High Pass: 100, 200, 400 Hz Low Pass: 600, 800, 1200 Hz
Band Pass Filters	9 Selectable band pass ﬁlters + filteROT™ function High Pass: 100, 200, 400 Hz Low Pass: 600, 800, 1200 Hz
ﬁlteROT Mode	Filter Scanning & Rotation Mode
Activation	Manual MUTE key on hand-switch

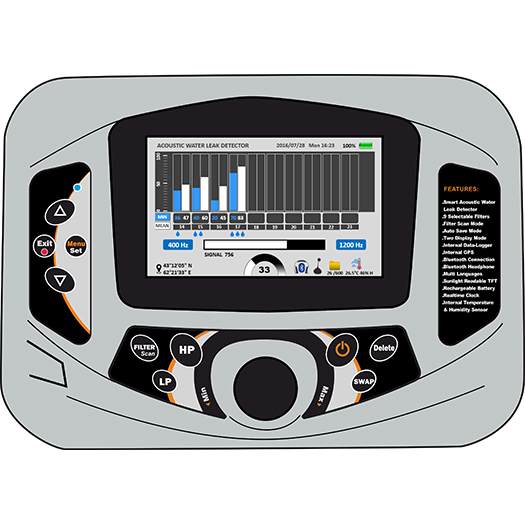

Display	5” Color sunlight readable TFT (with 1000 NITS backlight) Backlight: ON, OFF, Auto adjustment (Depend on environment light) Multi languages: English / French etc Measuring and displaying values: Signal Strength \| Minimum / Average Signal Strength Display values in numeric, Bar-graph and Line-graph (Selectable with SWAP Key) The user can mark each signal as a leakage value also, unmark or Delete. Date and Time \| Continuous GPS Data \| System Temperature and Humidity Battery Level \| Memory Capacity \| Headphone Status Sensor Status \| Bluetooth Status \| Sensitivity Level
Audio	System alarm / 8-ohm stereo headphone / Bluetooth headphone support. Module standard Bluetooth 4.0 Class 2 Bluetooth, FCC, and CE certiﬁed Backwards compatible with 1.1, 2.0, 2.1 + EDR and 3.0, Operating Range 20 to 30 meters
GPS	Internal GPS / CEP 2.5m, Refresh time 1 sec
Memory	Automatic Data storage upto 1,200,000 data frames 30 folders x 20 projects per folder x 2000 data frames per project
Data Communication	Bluetooth for data transferring to HSS Water Leak Detection APP
Smart-phones APP	HSS Water Leak Detection APP (for Android version of smart-phones and tablets)
Standards	IC: 11012A-BC127 / FCC: SSBC127-X This device complies with part 15 of the FCC Rules
Battery	3 x 3.7V / 3500mAh 18650 Li-ion Rechargeable Battery Pack, Unreachable 100 - 240V, 50/60Hz Fast Charger PERIJA PLUS is equipped with Power Management System.
Transport	Impact resistant Hard case with IP68 protection
Operating Temp. Range	Operation Temperature: -10 to +50 °C Storage Temperature: -20 to +60 °C Dust proof and Water-resistant
Dimension	Controller Main Unit - (L x W x H): (136 mm x 60 mm x 30 mm) Standard package - (L x W x H): (188 mm x 130 mm x 65 mm)
Weight	Controller Main Unit: ~ 1.75 Kg Pick-up sensor with hand-switch set: ~ 0.57 Kg Standard package: ~ 6.55 Kg
Warranty	1 Year Limited Warranty
Controller	Made in Canada
Ground Microphone	Made in Japan

Experience

Greater Visakhapatnam Municipal Corporation Uses Perija Plus Underground Water Leak Detector
Detection of water leakage in underground pipelines, and related maintenance for 10 years, keeping NRW water losses at a minimum. ...

Read More

FAQ

Do you have a question which we can answer for you? Click here if Yes

How many Band Pass Filters does It have?

9 Band Pass Filters; Ranges from 100 -1200 Hz.
What is FilteROT™ mode available in the instrument?

FilteROT™ mode helps to select the best available sound filter in the workplace.
Does Perija Plus save the output data?

Perija Plus is equipped with dedicated memory to save leak detection, system performance, geographic data.
Does the equipment come with GPS?

It has built-in GPS for logging GPS locations to save leak detection
What is warranty period?

The instrument comes under 1 Year Warranty.
The instrument should be used for leak detection on water pipes upto what depth?

Leaks in 4.5- to 5 meter deep water pipes can be detected subject to water pressure being ≥ 2 bar. In case the pressure is lower, it becomes important to temporarily increase water pressure in the pipe by adding a pump at one of the valves to increase water pressure for leak detection.
